1.卧式驱动轮24V0.75KW,无须人工手推行走,轻松自如；

2.蓄电池24V170AH驱动行驶,白天使用,夜晚充电,自动跳转；.

3.吊臂1900-2500可液压伸缩.吊臂上升和下降；

4.支撑腿抽拉式可校正平衡. 自行走吊车可配合车间的行车使用,是车间良好的辅助工具；

5.行走系统24V, 上升下降380V50HZ三相电.非标型可据客户要求订制。

1.Horizontal driving wheel 24v0.75kw, no need to push in driving, easy and comfortable;

2.24V170AH driving battery power, use in day time, , intelligent battery couldrechargein night;

3.Arm reach 1900-2500mm, hydraulic extend and return, arm could be lift up and down;

4.Straddles are telescopic manually, and helps in balance correction. Crane could coordinatewith overhead crane in workshop, a nice assist tool in workshop;

5.Driving system 24v, lifting up and down by AC power, non-standard could be customized upon request.

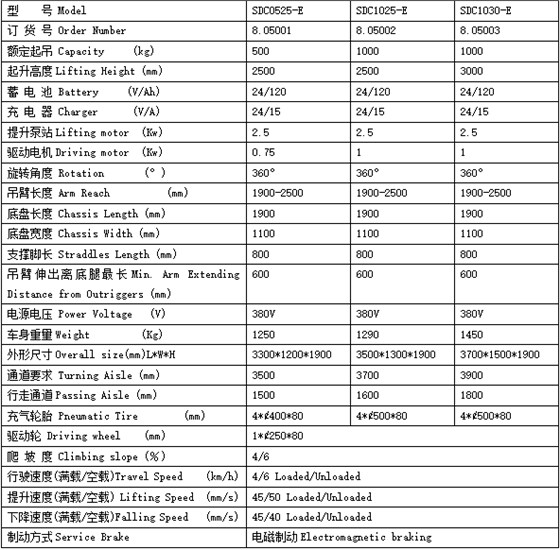

产品参数

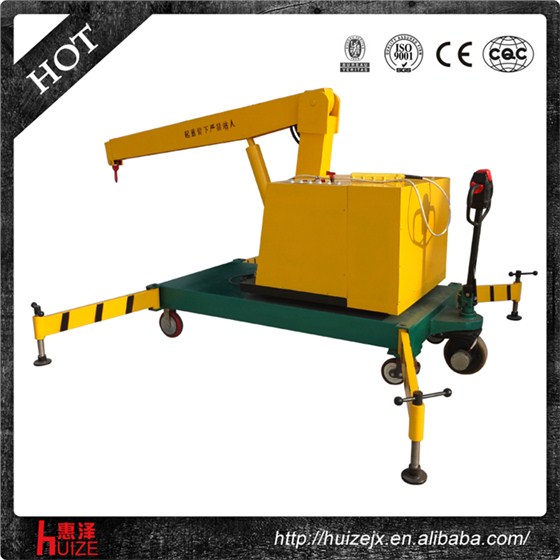

产品图片

1.客户收到的产品与订货产品型号不符。

售后说明

1.整车保修一年

2.整车钢结构焊接断焊或断裂一年内正常保修（超载导致变形，变形不保修）

3.24小时到48小时内到达或解决

4.提供操作视频讲解更换配件

5.终身提供配件
